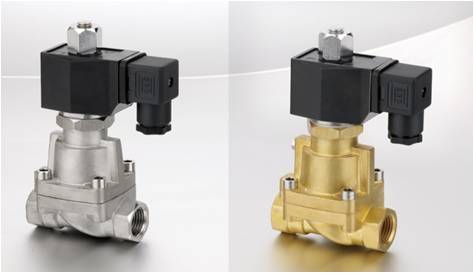

2 Way Solenoid valve
2-way piloted diaphragm solenoid valves Normal closed are capable of operating at zero differential pressure. They are capable of handling an operating pressure range from 0 PSI to 200 PSI. These valves are offered in a wide variety of diaphragm and body materials to provide on-off control of various fluids. Sizes 1/2" to 2", with coil voltage rating 21V DC to 220V AC, For gases use also availble in Aluminium Body.
|
|
| ________________________________________ |
Aluminium body 5/2, 5/3 Way Signle acting solenoid valve
Aluminium 5/2 Way Spring return Pneumatic Solenoid Valves have 5 ports with 2 positions with the spring return system. This is one of the Pneumatic Industries most popular Aluminium 5/2 way solenoid valves and they can be mounted to aluminium manifold blocks for ease of installation and maintenance. These are ideal for compressed air control for pneumatic cylinder and air actuator control offering fail safe open or closed positioning depending on pipework set up. This compact design has the advantages of using Low Power 5 watt Coils reducing power consumption.
|
|
| ________________________________________ |

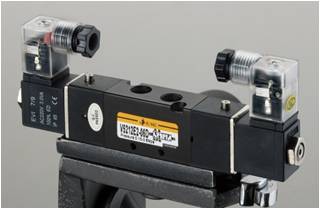

Aluminium body 5/2, 5/3 Way Double acting solenoid valve
Aluminium 5/3 Way Double Acting Pneumatic Solenoid Valve has 5 ports with 3 positions and with twin coils offering one of the pneumatic industries most popular Aluminium 5/3 way solenoid valve. These are also ideal for compressed air control for pneumatic cylinder and air actuator control offering a stay put function as the fail safe position is stop even in mid stroke or actuator mid turn position . This compact design has the advantages of using Low Power 5 watt Coils with reduced power consumption,
|
|
| ________________________________________ |
2 way flange solenoid valve
Diaphragm pilot solenoid valve with lower working pressure. Wide size range 1/8" to 2". Body material: Brass / stainless steel. Operating type: Normally closed / normally opened. Mode of action: 2/2-way, direct acting. Sealing material: NBR, EPDM or Viton.
|
|
| ________________________________________ |
Pneumatic cylinders
Our pneumatic cylinders will vary in appearance, size and function, they generally fall into one of the specific categories. However there are also numerous of types of pneumatic cylinder available, many of which are designed to fulfill specific and specialised functions. You just have to ask what you need for your specific application."
|
 |
| ________________________________________ |
AIR TREATMENT UNIT
It’s made by three elements: Filter, regulator and lubricator.
Its main function is to extend the pneumatic installations and its components lifetime, due its filtered the air and separated the liquids particles of it, keeps the constant pressure and also lubricate the moving parts, reducing the attrition.
Its body is made by aluminium and has different diameters of connection from ¼” to 1”. The filtering accuracy it’s about 5,10 and 25 microns; the working pressure it’s up to 145 psi and has different configuration availables.
|
 |
| ________________________________________ |
Pneumatic Accessories
Pneumatic accessories keep their function to connect different parts, to transfer the pressure power or the lower the noise from the pneumatic system, so the pneumatic system can work smoothly and noiselessly, Pneumatics & hydraulics has a wide range of pneumatic accessories for different situations, we have different kinds of plastic push in fittings, metal push in fittings, pneumatic connectors, PU tubing, PA tubing, silencers, pressure gauges, air guns, gas springs.
|
|
| ________________________________________ |
Angle Valves
The Angle Seat Valve is a 2/2-way pneumatically actuated piston valve for liquids, gases, steam and some aggressive fluids (vacuum services also). The superior design of the piston is unique to the market, enabling the plug to retract farther from the flow path, ensuring the highest flow capacity. The dual packing design, and a large diameter self aligning stem insures the highest cycle life. Angle Seat Valves are ideal for use in Commercial and Industrial Process Applications including Steam applications, Air drying equipment, Sterilizers, Autoclaves, Process control applications, Laundry equipment, Textile dyeing & drying, Bottling & dispensing equipment, Ink & paint dispensing, and Industrial compressors.
|
|
| ________________________________________ |
Pressure Switches
"Pressure switches are used for regulating, monitoring and alarm systems in industrial applications.
Suitable for gaseous media and air. They are fitted with a single-pole switch changeover (SPDT), and can control single-phase ac motors of up to 2 kW directly. These adjustable, pre-set Pressure Switches are suitable for pressure and/or flow detection in valve systems such as Deluge or Pre-action, or with other control valves for non-hazardous locations. The Pressure Switches are also used to provide a low pressure supervisory signal for valves Pre-action Systems or Pneumatically controlled deluge valves."
|
|
| ________________________________________ |
Needle Valves
"Wide variety of Needle Valves to meet the varying requirements of the Petrochemical, Power and Gas Industries.
Bore Sizes: 1/8"" (3.2mm), 3/16"" (4.8mm), 5/16"" (8mm)
3/8"" (9.5mm), 7/16"" (11mm), 5/8"" (16mm)
Straight Through (roddable) and globe pattern models
Needle (rising plug) and ball stem end models
Standard pressures to 6000 psig (414 barg), and to 10,000 psig (689 barg) available
Various standard end-connections from 1/4" to 1" - threaded, socketweld, buttweld"
|
|
| ________________________________________ |
Gauge Valves
"Gauge valves are recommended for a variety of applications from economical gauge isolation valves, to rugged primary/root piping valves, and a block and bleed pressure relief series. All Century Gauge valves share these outstanding features and options to increase process flexibility:
Available with integral (metal) or soft seats
Wide range of available replaceable seat construction materials
Straight-through or globe-pattern construction for operational flexibility
NPT or socketweld inlet and outlet connections, connection ranges from 1/2" to 3/4"
|
 |
| ________________________________________ |
Root Valves / Bleed Valve
The Single & Double Block CM40 forged barstock construction features a straight through (roddable) bore design. The roddable design allows the valve to be rodded out while in line and under pressure, should the valve become plugged. It also features a replaceable soft or metal seat, which can be easily removed and replaced, eliminating the need for valve removal should the seat become damaged by process conditions. It is ideally suited for severe process conditions (i.e. high temperatures, high pressure, and steam) or applications where valve plugging is a concern.
|
|
| ________________________________________ |
Manifold Valves
"Manifold Valves, available with hard or soft seat, are made of both carbon steel and 316 stainless steel with inline pipe threads or flanged configurations. All are helium leak tested. Mounting hardware is available. Manifold Valves connect system impulse line and transmitter.
Valves can be expanded to 16 stations.
Cartridge Valves have stainless steel body.
Valves are available with single-/multi-station manifolds. "
|
|
| ________________________________________ |
Automatic Regulating Valve
"The flow rate controller is used in heating and cooling systems with circulation pumps. The controller
automatically maintains flow at the set rate by measuring and immediately adjusting to any variation
in pressure. No additional measurements are necessary and the correct quantity of water is supplied
to all parts of the system under all operating conditions.
The flow rate controller maintains the flow
at a constant rate that has been preset; the diaphragm responds to the pressure upstream of the
regulating valve (via an internal impulse line) and dowstream. The valve settings directly refer to
the volume flow; accordingly, the maximum volume flow is preset directly according to the diagram
when the controller is fitted"
|
|
| ________________________________________ |

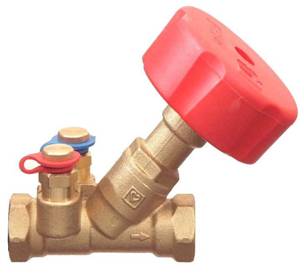

Commissioning / Balancing Valve
The commissioning valve has hidden regulating and locking functions with high accuracy and good repeatability. The valve is fitted with two standard pressure test points, extended test points are available when required. A ‘Micro-set’ two number position indicator is fitted to the adjustment handle for recording the valve position.
|
|
| ________________________________________ |
Diffrential Pressure Control Valve
"The differential pressure controller is a straight-version proportional controller and works without
auxiliary energy. The required nominal differential pressure can be continuously adjusted from 50 to
300 mbar. The adjusted set point can be read, locked and sealed. The nominal set point is factory
preset at minimum. The required set point is adjusted by means of a hand wheel and secured against
turning by the block ring. The impulse line (1000 mm) is included with the valve and is connected to
a circuit regulating valve in the flow."
|
|
| ________________________________________ |
Regulating Valve
"3-way-valve with outside parallel thread, according to ISO 228/1, with flat seal, pipe connections are not included in package. Spindle made of stainless-steel, brass valve cone with glass fibre reinforced Teflon
sealing.Brass stuffing box with EPDM O-ring, DR brass body.Using mixing and diverting valve 4037 gives an advantage to usual installations as there are no sealing edges and so cannot be worn, and thus leak. Even after long service the leakage rate will be minimal."
|
|
