Gas / Liquid separators

Wright Austin ST and 31L-ST Gas Liquid Separators Cast Iron separators with integral drain trap for up to 40% by weight of the units flow capacity

This version of Wright Austin cast iron air/liquid separators has an integral drain trap, making it easier to install and very compact. The integral trap automatically ejects the condensate at predetermined levels without loss of line pressure.

ST and 31L-ST gas/liquid separators usually ship within 7-10 days after receipt of an order. If the lead time is critical, please contact our office and obtain a lead-time estimate based upon the current manufacturing backlog.

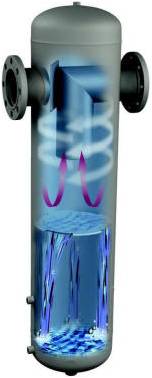

"Wright Austin TS Gas Liquid Separators for up to 60% by weight of the units flow capacity"

Wright Austin TS style air liquid separators are designed to remove 99% of all liquid droplets and solid particles greater than or equal to 10 microns in size. The TS style can handle a higher volume of entrained droplets/particles than the standard T style. Wright-Austin TS style gas/liquid separators are typically used for applications where higher than normal liquid loading causes a "slugging" problem, common to refinery and chemical plant applications. TS gas/liquid separators are used upstream of gas turbines, adsorption towers, gas scrubbers and steam generator outlets.

Moisture laden gas enters the TS style separator and is deflected downwards in a centrifugal motion. The reduction in velocity separates out the liquid, which falls below and coalesces under the patented Vortex Containment Plate (VCP). The VCP prevents reentrainment of the liquid into the gas. The resulting dry, clean gas flows upwards and exits through the outlet of the separator. Wright Austin accomplished this without complex baffles, deflectors and other structures that obstruct the flow-stream and this results in very low pressure drops.

TS style gas/liquid separators are fabricated from carbon steel, 304SS, 316SS and can also be fabricated from exotic alloys when needed.

TS style gas/liquid separators are available with ASME code stamp and CRN. All fabricated TS style gas/liquid separators are designed in New Jersey (USA) in accordance with ASME Section VIII, Division I.

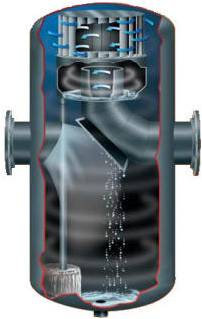

"Wright Austin R Gas Liquid Separators for up to 90% by weight of the units flow capacity"

Wright Austin R style air liquid separators are designed for liquid "slugs" or heavy liquid loads where a large reservoir to satisfy liquid hold-up requirements. As with all other Wright Austin gas/liquid separators, the R style will remove 99% of all liquid droplets and solid particles greater than or equal to 10 microns in size. Wright-Austin T style gas/liquid separators are used mainly in the chemical and process industries where a large volume of liquid needs to be separated from gases; they are also used as a flash or surge tank as well as a scrubber or demister ahead of a steam turbine.

R style gas/liquid separators have a two stage process for separation. The initial stage the liquid enters the inlet and is deflected downward, losing velocity, resulting in a majority of the liquid to accumulate within the reservoir. The remaining moisture laden gas passes up through a vaned element where the remaining moisture is separated by centrifugal force, coalescing within the reservoir. The resulting dry, clean gas flows upwards and exits through the outlet of the separator. Wright Austin accomplished this without complex baffles, deflectors and other structures that obstruct the flow-stream and this results in very low pressure drops.

R style gas/liquid separators are fabricated from carbon steel, 304SS, 316SS and can also be fabricated from exotic alloys when needed.

R style gas/liquid separators are available with ASME code stamp and CRN. All fabricated R style gas/liquid separators are designed in New Jersey (USA) in accordance with ASME Section VIII, Division I.

"31L Style Horizontal Gas Liquid Separators Gas liquid separators for up to 5% by weight of the units flow capacity"

The Wright-Austin 31L series of in-line horizontal gas/liquid separators remove 99% of droplets and particles equal to or greater than 10 microns in a very compact design. As the moisture laden gas enters the separator, it encounters a curved, stationary blading structure welded to the inside of the vessel, and this causes a centrifugal force, propelling the droplets to the outer wall. The liquid coalesces and exits the separator's drain.

Model 31L Wright Austin horizontal air liquid separators have an in-line barrel orientation and side inlet connections and can be used for both horizontal or vertical down flow applications.

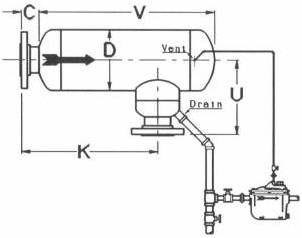

"34L Style Horizontal Gas Liquid Separators Gas liquid separators for up to 10% by weight of the units flow capacit"

The Wright-Austin 34L series of in-line horizontal gas/liquid separators are designed for horizontal flow with bottom discharge installations to remove 99% of droplets and particles equal to or greater than 10 microns in a very compact design. As the moisture laden gas enters the separator, it encounters a curved, stationary blading structure welded to the inside of the vessel, and this causes a centrifugal force, propelling the droplets to the outer wall. The liquid coalesces and exits the separator's drain.

As with all Wright-Austin gas/liquid separators, there are no moving parts, they are self-cleaning and require no maintenance. Wright Austin gas liquid separators employ a patented Vortex Containment Plate (VCP) and combined with centrifugal action assures maximum separation of entrainment with minimal chances of reentrainment. Wright Austin accomplished this without complex baffles, deflectors and other structures that obstruct the flow-stream, resulting in very low pressure drops.

All Wright Austin Model 34L series air liquid separators are available with ASME code stamp and CRN. All fabricated 34L style gas/liquid separators are designed in New Jersey (USA) in accordance with ASME Section VIII, Division I.

There are two flow path configurations, refer to the outline illustrations below and follow the links to the associated part number, pricing and outline drawing pages. If your flow path is vertical, review the 30L Style Vertical Gas/Liquid Separator page.

"36L Style Horizontal Gas Liquid Separators Gas liquid separators for up to 10% by weight of the units flow capacity"

The Wright-Austin 36L series of in-line horizontal gas/liquid separators are designed for installations having a horizontal flow with bottom inlet to remove 99% of droplets and particles equal to or greater than 10 microns in a very compact design. As the moisture laden gas enters the separator, it encounters a curved, stationary blading structure welded to the inside of the vessel, and this causes a centrifugal force, propelling the droplets to the outer wall. The liquid coalesces and exits the separator's drain.

As with all Wright-Austin gas/liquid separators, there are no moving parts, they are self-cleaning and require no maintenance. Wright Austin gas liquid separators employ a patented Vortex Containment Plate (VCP) and combined with centrifugal action assures maximum separation of entrainment with minimal chances of reentrainment. Wright Austin accomplished this without complex baffles, deflectors and other structures that obstruct the flow-stream, resulting in very low pressure drops.

All Wright Austin Model 36L series air liquid separators are available with ASME code stamp and CRN. All fabricated 36L style gas/liquid separators are designed in New Jersey (USA) in accordance with ASME Section VIII, Division I.

There are two designs, with sump (increases the capacity) and without sump. Each design is offered with an oversized body. The coalescer style can remove droplets as fine as 4 microns. Refer to the outline illustrations below and follow the links to the associated part number, pricing and outline drawing pages. If your flow path is vertical, review the 30L Style Vertical Gas/Liquid Separator page.

Not sure what you need? Fill-out our inquiry form for assistance.

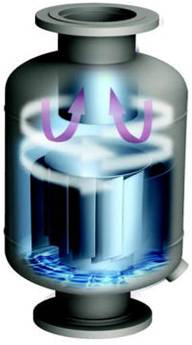

"32L Style Vertical Gas Liquid Separators Gas liquid separators for up to 10% by weight of the units flow capacity"

The Wright-Austin 32L series of in-line vertical gas/liquid separators remove 99% of droplets and particles equal to or greater than 10 microns in a very compact design. As the moisture laden gas enters the separator, it encounters a curved, stationary blading structure welded to the inside of the vessel, and this causes a centrifugal force, propelling the droplets to the outer wall. The liquid coalesces and exits the separator's drain.

As with all Wright-Austin gas/liquid separators, there are no moving parts, they are self-cleaning and require no maintenance. Wright Austin gas liquid separators employ a patented Vortex Containment Plate (VCP) and combined with centrifugal action assures maximum separation of entrainment with minimal chances of reentrainment. Wright Austin accomplished this without complex baffles, deflectors and other structures that obstruct the flow-stream, resulting in very low pressure drops.

All Wright Austin Model 32L series air liquid separators are available with ASME code stamp and CRN. All fabricated 32L style gas/liquid separators are designed in New Jersey (USA) in accordance with ASME Section VIII, Division I.

There are three configurations, refer to the outline illustrations below and follow the links to the associated part number, pricing and outline drawing pages. If your flow path is horizontal, review the 30L St

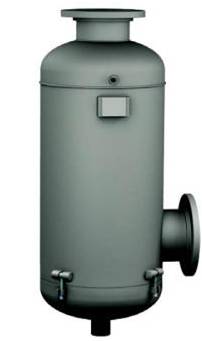

35L Style Vertical Gas Liquid Separators Gas liquid separators for up to 20% by weight of the units flow capacity

The Wright-Austin 35L series of in-line vertical gas/liquid separators remove 99% of droplets and particles equal to or greater than 10 microns in a very compact design. As the moisture laden gas enters the separator, it encounters a curved, stationary blading structure welded to the inside of the vessel, and this causes a centrifugal force, propelling the droplets to the outer wall. The liquid coalesces and exits the separator's drain.

As with all Wright-Austin gas/liquid separators, there are no moving parts, they are self-cleaning and require no maintenance. Wright Austin gas liquid separators employ a patented Vortex Containment Plate (VCP) and combined with centrifugal action assures maximum separation of entrainment with minimal chances of reentrainment. Wright Austin accomplished this without complex baffles, deflectors and other structures that obstruct the flow-stream, resulting in very low pressure drops.

All Wright Austin Model 35L series air liquid separators are available with ASME code stamp and CRN. All fabricated 35L style gas/liquid separators are designed in New Jersey (USA) in accordance with ASME Section VIII, Division I.

There are 4 configurations, refer to the chart below and follow the links to the associated part number, pricing and outline drawing pages. If your flow path is horizontal, review the 30L Style Horizontal Gas/Liquid Separator page.

37L Style Vertical Gas Liquid Separators Gas liquid separators for up to 20% by weight of the units flow capacity

The Wright-Austin 37L series of in-line vertical gas/liquid separators remove 99% of droplets and particles equal to or greater than 10 microns in a very compact design. As the moisture laden gas enters the separator, it encounters a curved, stationary blading structure welded to the inside of the vessel, and this causes a centrifugal force, propelling the droplets to the outer wall. The liquid coalesces and exits the separator's drain.

As with all Wright-Austin gas/liquid separators, there are no moving parts, they are self-cleaning and require no maintenance. Wright Austin gas liquid separators employ a patented Vortex Containment Plate (VCP) and combined with centrifugal action assures maximum separation of entrainment with minimal chances of reentrainment. Wright Austin accomplished this without complex baffles, deflectors and other structures that obstruct the flow-stream, resulting in very low pressure drops.

All Wright Austin Model 37L series air liquid separators are available with ASME code stamp and CRN. All fabricated 37L style gas/liquid separators are designed in New Jersey (USA) in accordance with ASME Section VIII, Division I.

There are 3 configurations, refer to the chart below and follow the links to the associated part number, pricing and outline drawing pages. If your flow path is horizontal, review the 30L Style Horizontal Gas/Liquid Separator page.

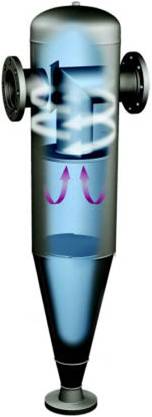

T-DTL Gas Liquid Separators

Wright Austin high efficiency T style DTL gas liquid separators for horizontal applications are designed specifically for liquid droplet separation involving high solids content. T style DTL gas liquid separators have a conical shaped drain sump for better drainage.

When properly sized, our separators will remove up to 99% of all liquid and solids greater than 10 microns in size from an air, gas or steam flow. The removal is accomplished by a design that causes the air/gas/steam to enter a controlled centrifugal flow. This results in forcing the entrained material to the outer wall and the VCP prevents re-entrainment. The removed particles and liquid accumulate at the bottom of the conical drain sump.

All Wright Austin Model DTL series air liquid separators are available with ASME code stamp and CRN. All fabricated 30L style gas/liquid separators are designed in New Jersey (USA) in accordance with ASME Section VIII, Division I.

The typical float style drain trap is not recommended for this type of application, it is suggested that a rotary valve is used instead because its design inherently allows for the solids to be removed with minimal loss of air, gas or steam from the system.

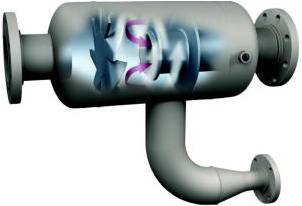

31L-DTL Gas Liquid Separators

Wright Austin high efficiency 31L style DTL gas liquid separators for horizontal applications are designed specifically for liquid droplet separation involving high solids content. 31L style DTL gas liquid separators have a compact design and conical shaped drain sump for better drainage.

When properly sized, our separators will remove up to 99% of all liquid and solids greater than 10 microns in size from an air, gas or steam flow. The removal is accomplished by a design that causes the air/gas/steam to enter a controlled centrifugal flow. This results in forcing the entrained material to the outer wall and the VCP prevents re-entrainment. The removed particles and liquid accumulate at the bottom of the conical drain sump.

All Wright Austin Model DTL series air liquid separators are available with ASME code stamp and CRN. All fabricated 30L style gas/liquid separators are designed in New Jersey (USA) in accordance with ASME Section VIII, Division I.

The typical float style drain trap is not recommended for this type of application, it is suggested that a rotary valve is used instead because its design inherently allows for the solids to be removed with minimal loss of air, gas or steam from the system.

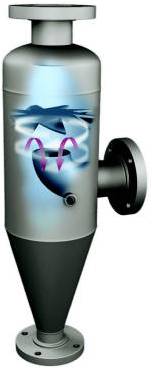

33L-DTL Gas Liquid Separators

Wright Austin high efficiency 33L style DTL gas liquid separators for downflow applications are designed specifically for liquid droplet separation involving high solids content. 33L style DTL gas liquid separators have a conical shaped drain sump for better drainage.

When properly sized, our separators will remove up to 99% of all liquid and solids greater than 10 microns in size from an air, gas or steam flow. The removal is accomplished by a design that causes the air/gas/steam to enter a controlled centrifugal flow. This results in forcing the entrained material to the outer wall and the VCP prevents re-entrainment. The removed particles and liquid accumulate at the bottom of the conical drain sump.

All Wright Austin Model DTL series air liquid separators are available with ASME code stamp and CRN. All fabricated 30L style gas/liquid separators are designed in New Jersey (USA) in accordance with ASME Section VIII, Division I.

The typical float style drain trap is not recommended for this type of application, it is suggested that a rotary valve is used instead because its design inherently allows for the solids to be removed with minimal loss of air, gas or steam from the system.

31L Coalescer Gas Liquid Separators Carbon Steel separators for up to 5% by weight of the units flow capacity

Model 31L Coalescer Separators are designed for removal of water and oil mist 4 microns and larger from air and gas pipelines. The 31L is a custom fabricated horizontal gas liquid separator having a manufacturing lead time of 6-8 weeks. If the lead time is critical, please contact our office and obtain a lead-time estimate based upon the current manufacturing backlog.

35L Coalescer Gas Liquid Separators Carbon Steel separators for up to 5% by weight of the units flow capacity

Model 35L Wright Austin Coalescer gas liquid separator has a side inlet and top outlet and designed for oil and water mist removal for droplets larger than 4 microns. The lead time for custom fabricated model 35L air/liquid separators is typically 6-8 weeks. If the lead time is critical, please contact our office and obtain a lead-time estimate based upon the current manufacturing backlog

36L Coalescer Gas Liquid Separators Carbon Steel separators for up to 5% by weight of the units flow capacity

Model 36L Wright Austin Coalescer gas liquid separator has a bottom inlet, side outlet and designed for oil and water mist removal for droplets larger than 4 microns. The lead time for custom fabricated model 35L air/liquid separators is typically 6-8 weeks. If the lead time is critical, please contact our office and obtain a lead-time estimate based upon the current manufacturing backlog.

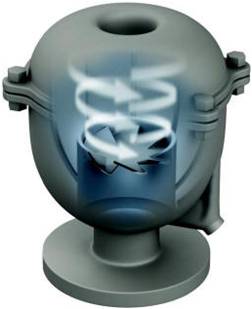

Cast Iron Exhaust Heads Cast Iron exhaust heads for up to 40% by weight of the units flow capacity

Wright Austin cast iron exhaust heads are designed for long service life, the body, cover and separating element are constructed of high tensile cast iron which resists fractures and corrosion.

Following are links to the Wright Austin outline drawing and the pricing table. The components to build cast iron exhaust heads are usually stocked items and shipments made within 1 week after receipt of an order. The lead time for cast iron exhaust heads when castings are not in stock is typically 6-8 weeks. If the lead time is critical, please contact our office and obtain a lead-time estimate based upon the current manufacturing backlog. If you need assistance with proper selection, please fill-out our inquiry form.

Fabricated Carbon Steel Exhaust Heads Exhaust heads for up to 40% by weight of the units flow capacity

Wright Austin custom fabricated carbon steel exhaust heads are used to reduce visible condensate plumes and to recover various chemistries prior to venting to atmosphere. Following are links to the Wright Austin outline drawing and the pricing table. The lead time for custom fabricated carbon steel exhaust heads is typically 6-8 weeks. If the lead time is critical, please contact our office and obtain a lead-time estimate based upon the current manufacturing backlog.

Fabricated Stainless Steel Exhaust Heads Exhaust heads for up to 40% by weight of the units flow capacity

Wright Austin custom fabricated 304SS exhaust heads eliminate visible condensate plumes and help to recover expensive boiler chemicals or other reagents. Following are links to the Wright Austin outline drawing and the pricing table. The lead time for fabricated 304SS exhaust heads is typically 6-8 weeks. If the lead time is critical, please contact our office and obtain a lead-time estimate based upon the current manufacturing backlog. If you need assistance with proper selection, please fill-out our inquiry form. (316SS available for approximately 15% additional cost).

Wright-Austin Model 90-AC and 95-AC Float Style Drain Traps in Cast Iron, Carbon Steel and 316SS

"Wright Austin float style drain traps provide an economical method for draining condensate and fluid from gas liquid separators. The components to build drain Wright Austin float drain traps are usually stocked items and shipments made within 7-10 days after receipt of an order. The lead time for cast products when castings are not in stock is typically 6-8 weeks. If lead time is critical, please contact our office and obtain a lead-time estimate based upon the current manufacturing backlog. If you need assistance with proper selection, please fill-out our inquiry form."

Wright-Austin Model 230-AC Cast Iron Float Style Drain Traps

The Wright Austin Model 230-AC float style drain trap is designed for gummy fluids and larger liquid volumes.

The components to build Model 230-AC float style drain traps are usually stocked items and shipments made within 7-10 days after receipt of an order. The lead time for cast products when castings are not in stock is typically 6-8 weeks. If the lead time is critical, please contact our office and obtain a lead-time estimate based upon the current manufacturing backlog.

Wright-Austin Model 300 Series-AC Cast Iron Float Style Drain Traps

Wright Austin Model 350 float drain trap is designed to remove gummy fluids and varying volumes from pipelines. Following are links to the Wright Austin outline drawings and the pricing table.

The components to build model 350 float style drain traps are usually stocked items and shipments made within 7-10 days after receipt of an order. The lead time for cast products when castings are not in stock is typically 6-8 weeks. If the lead time is critical, please contact our office and obtain a lead-time estimate based upon the current manufacturing backlog.
